Pegasus Enclosure Features

Pegasus Enclosure features include:

Mounting Pan

The Pegasus Enclosure come standard with mounting pans installed. The standard mounting pan is made of 2.0mm thick galvanized steel and formed with a 15mm reinforcement flange. The design feature an easy installation mechanism with a 45 degrees slot, mounted on sturdy M8 stainless studs with star-washers & nuts.

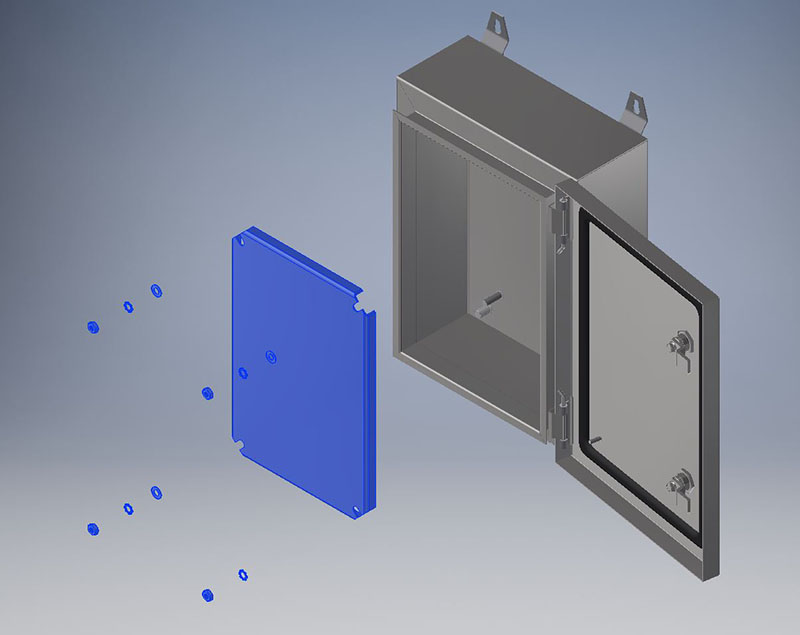

Mounting Pan Installation

Earth-wire Kit

Each Pegasus Enclosure comes with a free pack of earth-wire kit. Each kit comes with a yellow 2MM earth-wire with lugs installed, star washers, flat washers and nuts. Earth labels are also included



Mounting Tags

In additional to mounting the enclosures through the rear rivnut, the Pegasus can be adapted with mounting tags. Each Pegasus enclosure comes with four mounting tags (and installation fasteners) as standard. The mounting tags are installed with M8 stainless steel screws and washers, which are also included.

Mounting Tags Info
